Cooperations

ADM Elektronik






AMT GmbH cooperates with the well-known manufacturer ADM Elektronik producing the Towed CTD chain and the Towed vehicle BIOFISH. Both products are distributed by ASD Sensortechnik GmbH (asd-sensors@t-online.de). For a first overview please click below.

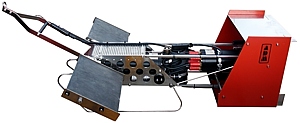

Towed vehicle BIOFISH with submersible probe systems

The Towed vehicle BIOFISH has been developed for the fast measurement of physical and chemical parameters with very high density of data in short times. It can be equipped with fast response sensors for CTD, dissolved oxygen, chlorophyll and others. The tow speed should be matched to the sensors but can be as high as 8 knots. Most field surveys are performed at an average of 3 knots. The standard depth capability is 60 meters.
    .jpg-Download: Poster University of Waikato

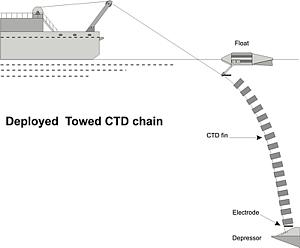

Towed CTD chain (several CTD-fin on a towed chain)

The Towed CTD chain is the response to the need for accurate two-dimensional data sets of temperature and salinity in the upper layer of the ocean down to 500 m. Up to 50 CTD data sets per second are available. The Towed CTD chain system is to be deployed from a ship equipped with an oceanographic winch, and consists of an insulated steel cable on which several CTD-fins are mounted. At the lower part of the tow-cable, a depressor insures the right chain deployment at a speed of up to 8 knots. As surface unit a special interface working together with a PC and a software package provides the current supply for the CTD-fins, the bi-directional communication and the data acquisition.



- click on picture to enlarge -




Sea & Sun Technology GmbH

AMT GmbH cooperates with the German manufacturer of underwater probe systems Sea & Sun Technology GmbH. Several common products have been developed, as for instance:

CTD-Oxygen Fast Profiling Probe
H2S/pH/T/D

Apart from this several probe systems are available as direct reading probe or as memory probe. The maximum deployment depth is limited by the type of the probe and by the selected sensors.

CTD 48/48 M
CTD 60/60 M
CTD 90 M
CTD 110 M
 		  .pdf-Download: CTD48M.pdf

Available Sensors for the Probe Systems (with depth limits):

H2S
Oxygen
Redox
pH
Conductivity
Temperature
Depth/pressure
Turbidity
Chlorophyll a
Dissolved Organic Matter
Current meter
Methane
 100 m
100/2000 m
160/500/1200 m
160/500/1200 m
2000/6000 m
6000 m
several up to 6000 m
6000 m
500 m
500 m
on request
on request

 Amperometric H2S Micro-sensor
Galvanic Oxygen Micro-sensor



Underwater Fuel Cell

The partners below have started a common development project co-financed by means of the German Ministry of Economics BMWA (AiF, ProINNO) to develope an underwater fuel cell system.

For more information please download here:

Pdf-download: LRFC Prototyp.pdf

AMT Analysenmesstechnik GmbH
Joachim-Jungius-Str. 9
D-18059 Rostock
www.amt-gmbh.com

Enitech Energietechnik – Elektronik GmbH
Hansestr. 21
D-18182 Bentwisch
www.enitech.de

Leibniz-Institut für Organische Katalyse
an der Universität Rostock e.V.
Buchbinderstr. 5-6
D-18055 Rostock
www.ifok.uni-rostock.de

Institut für Niedertemperatur-Plasmaphysik e.V.
an der Ernst-Moritz-Arndt-Universität Greifswald
Friedrich-Ludwig-Jahn-Str. 19
D-17489 Greifswald
www.inp-greifswald.de

Herbert Seus GmbH & Co. Kältetechnik KG
Ernst-Heinkel-Str. 3
D-18299 Rostock-Laage
www.seus-rostock.de
